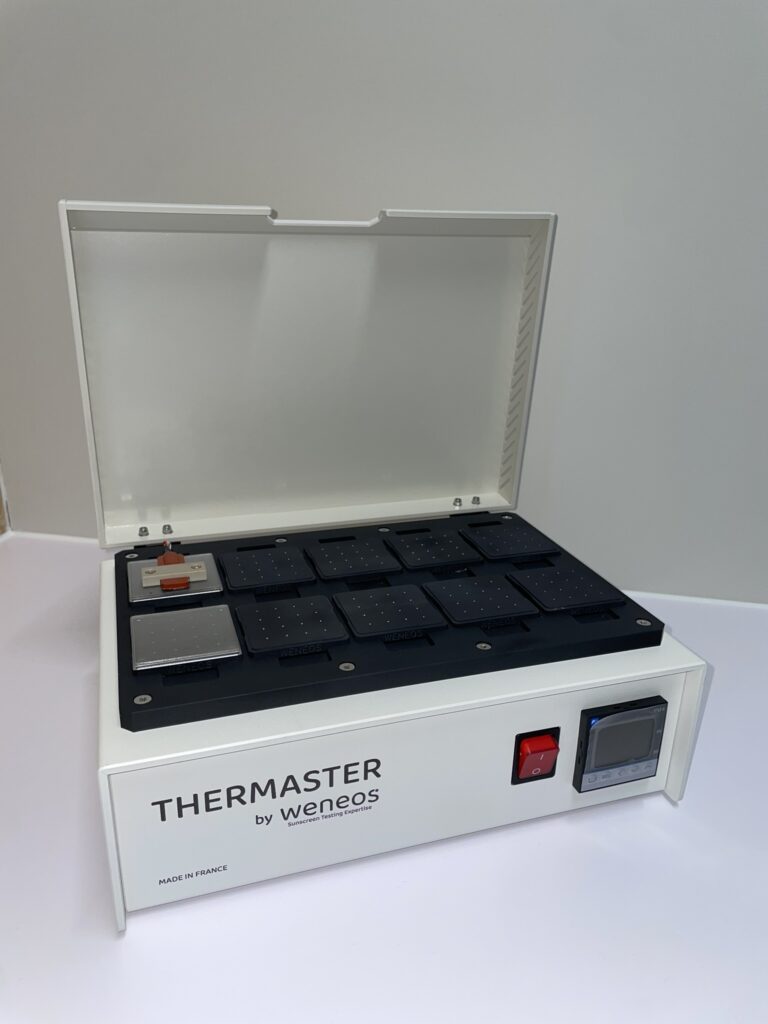

Chamber THERMASTER

The THERMASTER has been specifically designed to control and guarantee substrate surface temperature during the in vitro solar testing process, in order to comply with the various standards.

Fully suitable for PMMA substrates molded HD6 and sandblasted SB6 the metal support (with the substrate on top) is used to maintain temperature by inertia during the weighing and application stages (less than 2 minutes).

precision

locations

%

compliance with solar standards

Product information

Directions for use

The THERMASTER developed by Weneos (ex HelioScreen) is a thermal chamber that maintains the substrate surface temperature for the duration of an in vitro solar test with simple operation:



  • Switch on the unit and set the desired temperature,
  • Position PMMA substrates molded (HD6) or sandblasted (SB6) on the metal supports,
  • The metal support with the substrate resting on it is used to maintain temperature by inertia during the weighing and spreading steps using the robot SPREADMASTER robot (usually in under 2 minutes),
  • The substrate is placed back on the THERMASTER (in the dark) to ensure surface temperature control during the drying stage.
Technical information



DimensionsW: 300 mm x D: 210 mm x H: 120 mm
Weight2.3 kg
Temperature
  • Accuracy: 0.1 °C
  • Operating range: Ambient – 45°C (safety limit at 50°C max)
Location9 locations with metal gondolas
Compliance
  • ISO/DIS 23675 – In vitro SPF
  • ISO/CD 23698 – HDRS
  • ISO 24443:2021 – UVAPF in vitro
  • FDA monograph 2011 – Broad Spectrum
  • Boots Star Rating system 2011 – UVA/UVB ratio

Security

ce sans quadrillage

  • 2014/30/EU Electromagnetic Compatibility Directive (EMC),
  • 2011/65/EU Restriction of the use of certain hazardous substances (RoHS),
  • 2011/35/EU Low-voltage Directive,
  • Harminized standards (EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4, EN 62061)
Current100-240 VAC / 50-60 Hz
IP classIP42
Conditions of use
  • Temperature : [5° – 45°C]
  • Humidity: [10% – 80%] non-condensing



Environmental features



Power consumption30 W on average
CompositionPS UL, Aluminium



Warranty

1-YEAR STANDARD WARRANTY

WENEOS (HELIOSCREEN COSMETIC SCIENCE) guarantees that the equipment has been carefully tested, inspected and has left the factory in good working order, free from visible defects. WENEOS (HELIOSCREEN COSMETIC SCIENCE) warrants the equipment to be free from defects in material and workmanship, under normal use and operation, for a period of one (1) year from the date of initial start-up or demonstration; or eighteen (18) months from the date of shipment from the factory; whichever occurs first. The warranty is limited to free replacement of all defective parts and free labor during the first warranty year. Defective parts replaced under this warranty will become the property of WENEOS (HELIOSCREEN COSMETIC SCIENCE). The above warranty is subject to the following conditions: The equipment is installed in France, in the European Union, or sold by authorized representatives of WENEOS (HELIOSCREEN COSMETIC SCIENCE) or their agents outside the continental United States. The equipment being installed is operated and maintained in accordance with WENEOS (HELIOSCREEN COSMETIC SCIENCE) operating instructions, maintenance instructions and specifications. Use only authorized WENEOS (HELIOSCREEN COSMETIC SCIENCE) parts and components. The use of a duly authorized representative for all work carried out on WENEOS (HELIOSCREEN COSMETIC SCIENCE) equipment during the warranty period. Any variation of the above warranty must be in writing and mutually acceptable to WENEOS (HELIOSCREEN COSMETIC SCIENCE) and the customer. The warranty does not apply to damage resulting from installation errors, or to any equipment that has been damaged, modified or misused by the purchaser. Equipment parts that would generally be considered consumable service items under normal use, such as fuses, fingertips, etc., are not covered by the warranty. THERE ARE NO WARRANTIES EXTENDING BEYOND THIS DESCRIPTION, AND EXPRESSLY NO IMPLIED WARRANTIES OR MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL WENEOS (HELIOSCREEN COSMETIC SCIENCE) BE LIABLE FOR ANY SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES OR LOSS OF ANTICIPATED PROFITS SUFFERED BY THE PURCHASER.

Made in France
