Spectrophotometer SPF-290AS

The SPF-290AS™ is a UV spectrophotometer designed and optimized for the determination of sun protection values (SPF, UVA, Critical Wavelength, etc.) on a variety of sunscreens and cosmetic products.

Covering both UVB and UVA spectral regions, the system automatically scans from 290 to 400 nm, accumulating and storing data at intervals of 1, 2 or 5 nm. The monochromatic protection factor (MPF) is determined for each of the selected wavelengths and is used to calculate sun protection values, using solar irradiance curves and biological action spectra programmed into the software (but which can be easily modified).


Logo WENEOS Black Signature ex Helioscreen Plan de travail 1 is an official distributor of solarlight logo





compliance with solar standards

Product information

Directions for use

In vitro part

The SPF-290AS spectrophotometer is easy to use, designed and optimized for evaluating the sun protection (UVB and UVA) of cosmetic products….

Firstly, thanks to the integrated software that measures and calculates the various solar protection values.

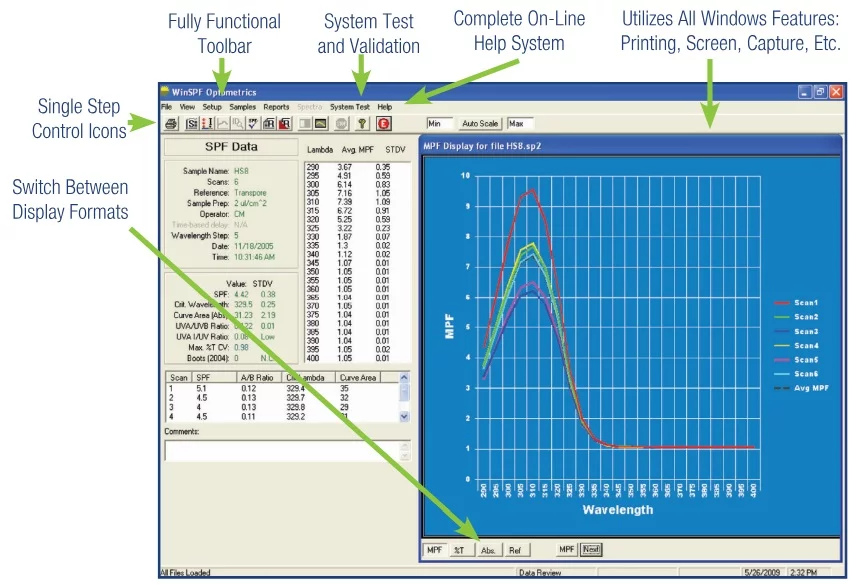

SPF 290AS software winSPF

What’s more, the system incorporates automatic substrate displacement at the various points (for greater repeatability, precision and time savings).

SPF 290AS control stage


Last but not least, the optical geometry enables absorbances from 0 to 3.2 Abs to be measured horizontally.

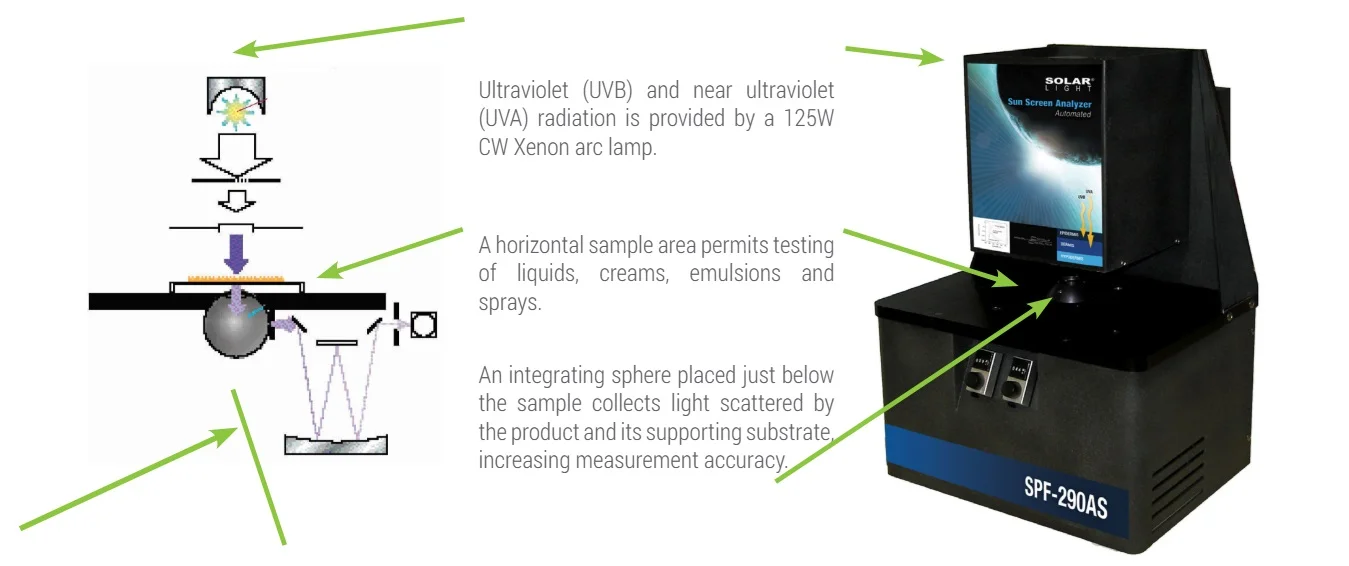

SPF 290AS Optical System

NB: A monthly check is necessary to ensure measurement quality and conformity.

Find all the elements needed to produce the in vitro part:


In vivo part (HDRS)

HDRS Overview

Technical information



Height: 46 cm

Width: 32 cm

Length: 35 cm

Total weight


  • Range: 290 to 400 nm
  • Accuracy: +/- 0.2% (0.58 nm – 0.80 nm)
  • Reproducibility: 0.25 nm
  • Full width at half maximum (FWHM): 1.66 nm
  • Interval: 1 nm, 2 nm or 5 nm (selectable)
  • High-sensitivity, multi-alkali lateral photomultiplier (PMT)
  • Absorbance: 0 – 3.2 (Dual Doped PMMA method)
  • SPF measurement range: 1 – 100+.
  • Scan measurement: approx. 20 seconds
  • Type : Xenon CW lamp
  • Stabilized power (nominal): 150W 100% Ozone Free
  • ISO/DIS 23675 – In vitro SPF
  • ISO/DIS 23698 – HDRS
  • ISO 24443:2021 – UVAPF in vitro
  • FDA monograph 2011 – Broad Spectrum
  • Boots Star Rating system 2011 – UVA/UVB ratio
  • Colipa


ce sans quadrillage


110VAC-220VAC, 50/60 Hz

Sample positioning

Automatic X-Y movement




SOLAR LIGHT COMPANY warrants that the equipment has been carefully tested, inspected and has left the factory in good working order, free from visible defects. SOLAR LIGHT COMPANY warrants the equipment to be free from defects in material and workmanship, under normal use and operating conditions, for a period of one (1) year from the date of initial commissioning or demonstration; or eighteen (18) months from the date of shipment from the factory; whichever occurs first. The warranty is limited to free replacement of all defective parts and free labor during the first warranty year. Defective parts replaced under this warranty will become the property of SOLAR LIGHT COMPANY. The above warranty is subject to the following conditions: The equipment is installed in the United States of America, Canada, or sold by authorized SOLAR LIGHT COMPANY representatives or their agents outside the continental United States. The equipment being installed is operated and maintained in accordance with SOLAR LIGHT COMPANY’s operating instructions, maintenance instructions and specifications. Use only authorized SOLAR LIGHT COMPANY parts and components. The use of a duly authorized representative for all work carried out on SOLAR LIGHT COMPANY equipment during the warranty period. Any variation of the above warranty must be in writing and mutually acceptable to SOLAR LIGHT COMPANY and the customer. The warranty does not apply to damage resulting from installation errors, or to any equipment that has been damaged, modified or misused by the purchaser. Equipment parts that would generally be considered consumable service items under normal use, such as fuses, lamps, detector shields, etc., are not covered by the warranty. THERE ARE NO WARRANTIES EXTENDING BEYOND THIS DESCRIPTION, AND EXPRESSLY NO IMPLIED WARRANTIES OR MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL SOLAR LIGHT COMPANY BE LIABLE FOR ANY SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES OR LOSS OF ANTICIPATED PROFITS SUFFERED BY THE PURCHASER. Extended warranty plans are also available.

Manufactured in an ISO 9001:2015 certified environment
